4 airport beam seating installation

2019-05-17 16:11:11

Author: OSHUJIAN PUBLIC SEAT

I introduce airport beam seating of SJ9088 as follows

1. Remembering to pave a good paper or linen cloth on the ground, to avoid scratching.

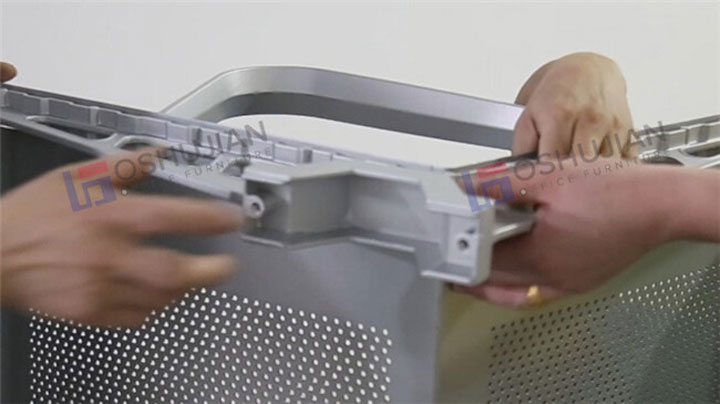

2. The Siamese backplane and aluminum bracket, with a thick cloth wrapped with a hammer light beat to make the back plate and bracket together.

4. Using 8 * 16 screws with the seat plate

5. Tighten the adjusting feet

6. Merge the hex beam and foot positions

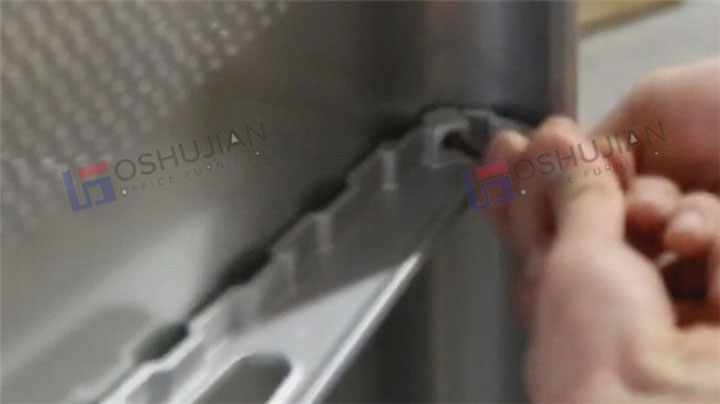

7. Coupled with aluminum fasteners hexagonal pipe beams and feet together and tighten the screws

8. The installed beam feet on the Siamese board

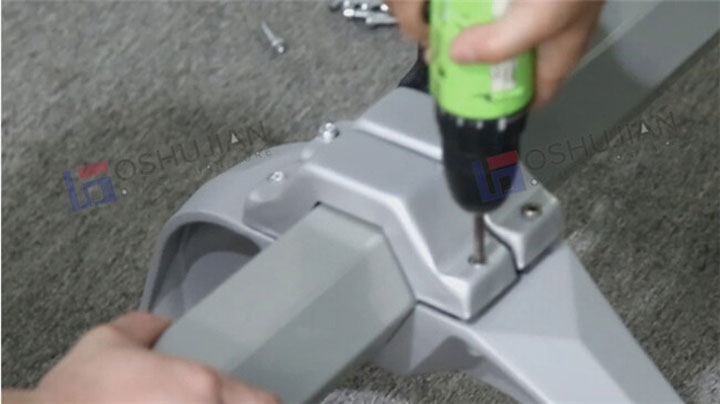

9. Tighten the screw with the electric screwdriver.
